NX | Tips and Tricks | Sketch and Profile Creation

By Alex Discher

In our latest Designcenter NX™ software Tips and Tricks video, we get to explore the new capabilities within Designcenter NX Sketch and Profile Creation™. Specifically, highlighting enhanced profile creation capabilities and dynamic sketching tools that enable users to create sketches with unprecedented control. These intuitive tools help users save valuable development time while ensuring consistent quality across all designs. Below, we’ll explore these new capabilities including chain curves, locking lengths and angles, and creating infinite lines.

Check out the video below or scroll down to learn more about these tools.

Understanding Dynamic Sketch Creation

The enhanced sketch tools in the in Designcenter NX Sketch and Profile Creation sketching environment introduces several new productivity-boosting features that streamline sketch creation process. By leveraging Mutiple options like chain curves and dynamic switching between sketch elements, users can create continuous profiles with minimal interruption.

Key benefits of enhanced sketching tools include:

Continuous sketch creation with Chain Curves
Dynamic switching between lines and arcs
Precise control through length and angle locking
Improved workflow with infinite line capabilities
Seamless integration with existing NX workflows

Chain Curves: Continuous Sketch Creation

The Chain Curves option in Designcenter NX Sketch and Profile Creation allows users to create connected sketch elements without repeatedly selecting start points. This continuous sketching approach significantly reduces the number of user clicks required. Users can easily toggle this option on/off using the right-click of a mouse, middle mouse button, or through the dialog box settings, providing flexibility when needed.

Dynamic Command Switching

One of the most powerful aspects of the new behavior of profile creation in the sketching environment is the ability to dynamically switch between different sketch commands. Users can quickly and seamlessly switch from lines to arcs (and vice versa) through the right-clicking of their mouse, maintaining their creative workflow without interrupting the sketch process. The system also intelligently recognize tangency conditions, displayed through visual indicators, ensuring smooth transitions between sketch elements.

Above is an example of switching from arc to line by just clicking of the user’s right mouse button.

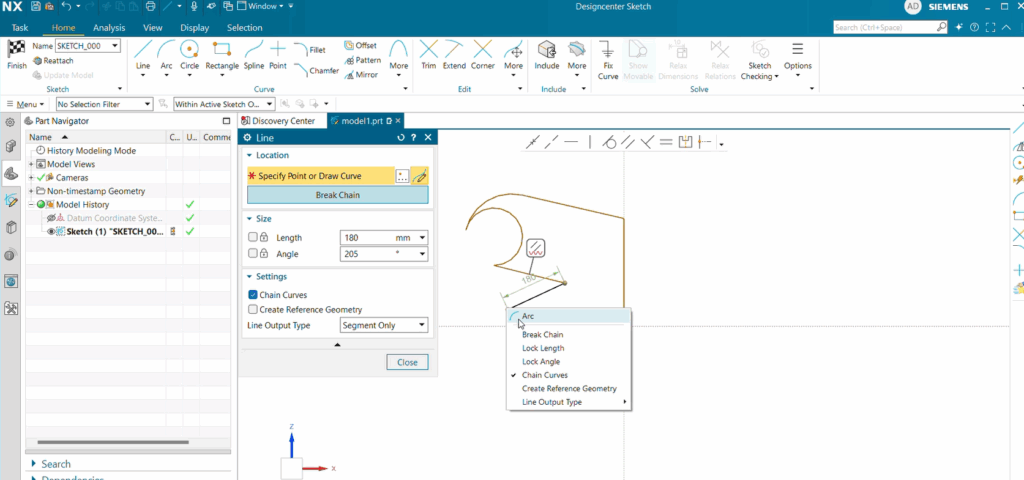

Above is an example of switching from line to arc by just clicking of the user’s right mouse button.

Length & Angle Control and Infinite Line Tool

The newline creation tool within the sketch environment now provides length and angle locking capabilities:

Lock length while freely adjusting angle
Lock angle while adjusting length
Lock both length and angle for rapid duplication

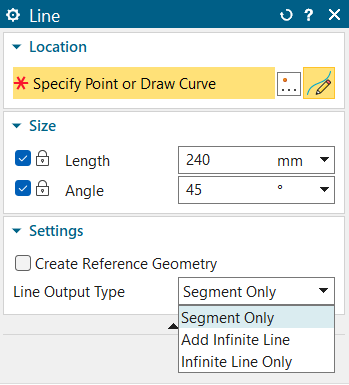

New Designcenter NX Sketch and Profile Creation line dialog box showing both the locking angle and line capabilities, as well as one way to access the infinite line tool.

Using these new options from Designcenter NX Sketch and Profile Creation users can easily enable users to create precise, controlled sketches while maintaining the flexibility to adjust parameters as needed. Another new powerful tool is the introduction of the infinite line tool. Accessible through the line output type dropdown or right-click menu, this option enables users to create reference lines for mirroring sketches and helping establish center lines for symmetrical designs. Using a combination of these three new tools will allows users much more flexibility.

Summarizing Sketch and Profile Creation

By combining the new options and behavior of the line and arc tools with the sketch environment, users can significantly reduce the time spent creating and modifying sketches. The intuitive nature of these tools, coupled with their dynamic functionality, allows designers to focus on creativity rather than command execution. Whether you’re working on concept sketches or production-ready designs, these enhanced sketching capabilities provide the precision and flexibility needed for modern design workflows. By mastering these tools, users can create more sophisticated designs in less time, ultimately improving overall productivity and design quality.
