What’s new in Opcenter Execution MDD 2504

Enhanced user experience and tooling improve customer value

Summary

Opcenter™ Execution Medical Device and Diagnostics (EX MDD) software serves as the foundation for leading global manufacturers and product innovators that want to enable rapid change, lean manufacturing, consistent quality output, rapid new product introduction (NPI) and higher profit margins. Integrated with enterprise resource planning (ERP), product lifecycle management (PLM), supply chain management (SCM), customer relationship management (CRM) and the shop floor, Opcenter EX MDD completes the technology infrastructure for manufacturing. Solutions are architected for global use, enabling worldwide visibility for real-time control and mission-critical operations.

Opcenter EX MDD 2504 along with the Mendix™ Low-code platform, which is part of the Siemens Xcelerator business platform of software, hardware and services, delivers new enhancements to improve an application’s capabilities and user experience. Using Mendix Low-code, you can access a development framework and a community of prebuilt marketplace components to easily create and deliver powerful, optimized and role-based apps.

Containerized deployments on Amazon web services (AWS) are now supported, to provide greater flexibility in choosing a cloud vendor. Enhanced tooling greatly simplifies application administration and maintenance. An expanded catalog of rich, out of the box manufacturing functionality enables rapid value realization.

Benefits

• Provide greatly enhanced role-based user experience
• Enhanced tooling simplifies application administration
• Expanded deployment platforms
• Delivers advanced manufacturing functionality

Capabilities

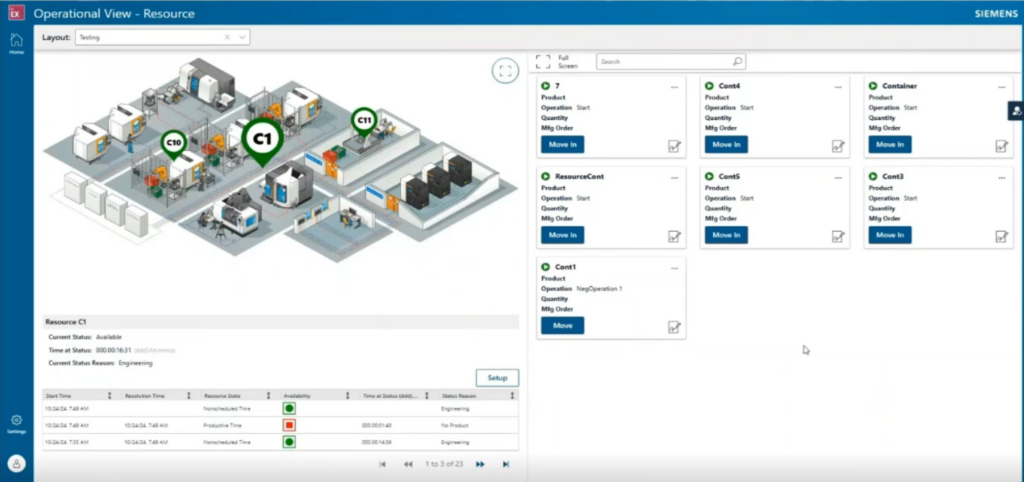

Operational view : Mendix module

• Updates the visual work area to allow markers representing work center, spec, operation and resource
  • Including the ability to add multiple markers of the same type
• Allows drilling down from one visual work area to another (ex: factory to line to operation)
• Supports a default layout image per employee
• Automatically refresh resource markers to update the resource status
• Delivers a native mobile barcode scanning control
• Updates error handling logic when tabbing off a field

Entity relationship diagram (ERD) tool

• Tool which reads metadata file and assigns referential integrity relationships
• Provides instructions on how to visualize the ERD

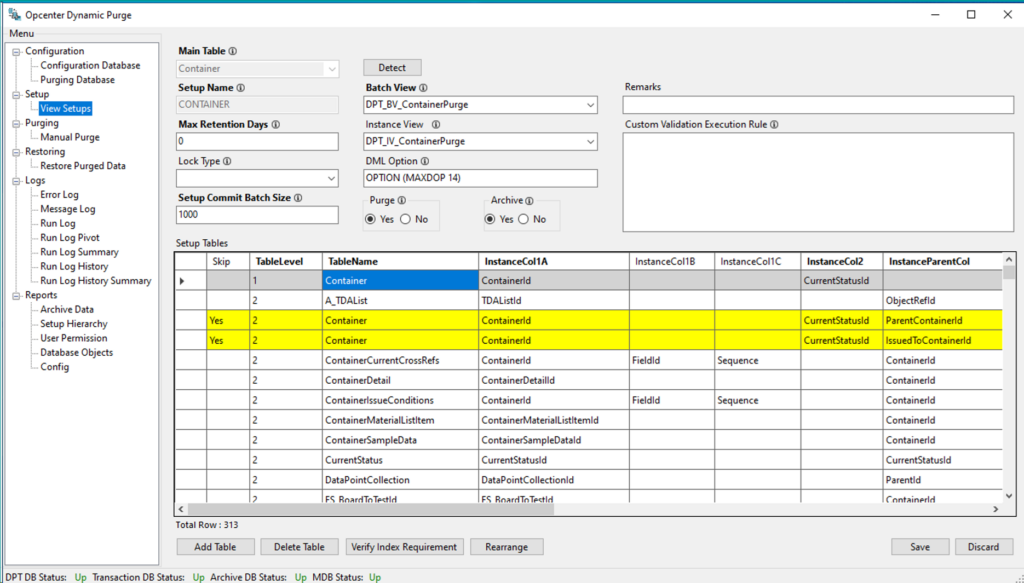

Dynamic purge tool – evaluation version

• Supports purging data from the transaction database
• Can optionally archive it into a designated schema
• Provides the ability to restore the archived data
• Supports automation through Microsoft SQL Server agent jobs to enable scheduled purging and archiving operations
• Available for Microsoft SQL Server only – Note: This product feature is provided to allow users to evaluate the software’s capabilities and provide feedback, which will be considered as part of a general availability of the feature. This version will have a limited set of capabilities, and some errors may be encountered. As such, it is not intended for production use

Containerization enhancements

• Provides additional support of the following containerized deployment options:
  • Amazon Web Services (AWS) with Oracle database running in a virtual machine (VM) on AWS
• Delivers container images of the 2504 release

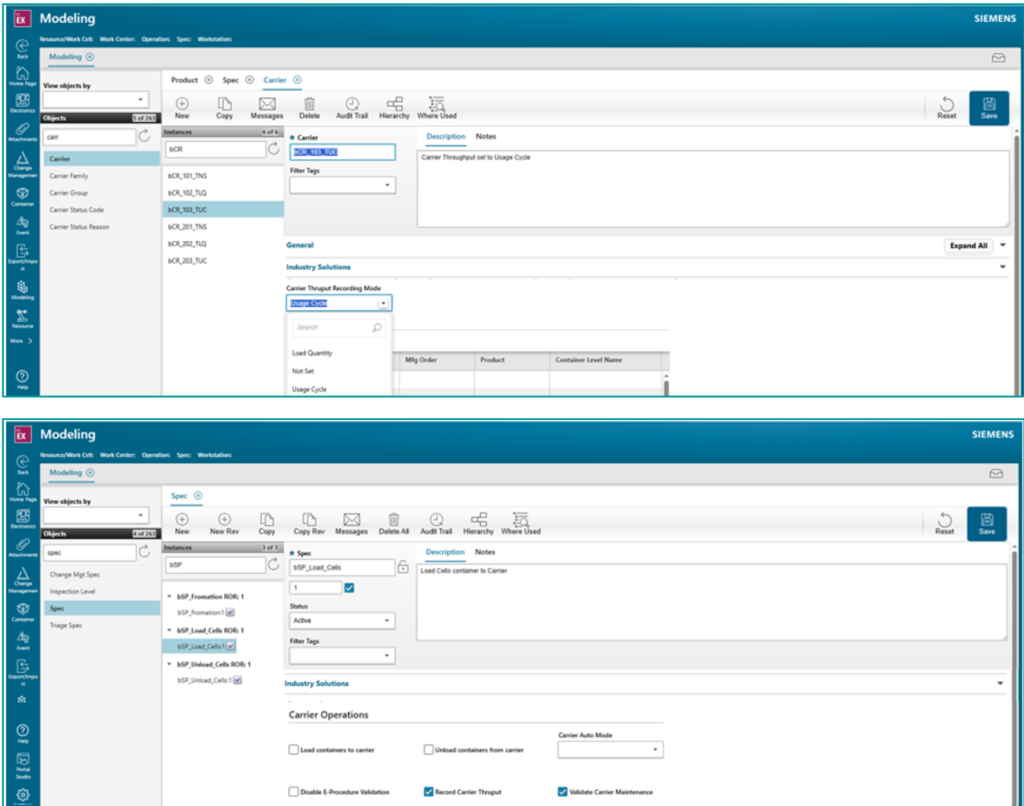

Throughput mode for carrier maintenance

• Supports the configuration of throughput modes for carriers based on
  • Usage – increase usage count when an empty carrier is loaded
  • Quantity – track count based on the sum of the quantities of all containers loaded onto the carrier
• Configuration of whether to record carrier throughput and whether to validate carries maintenance is managed on the spec

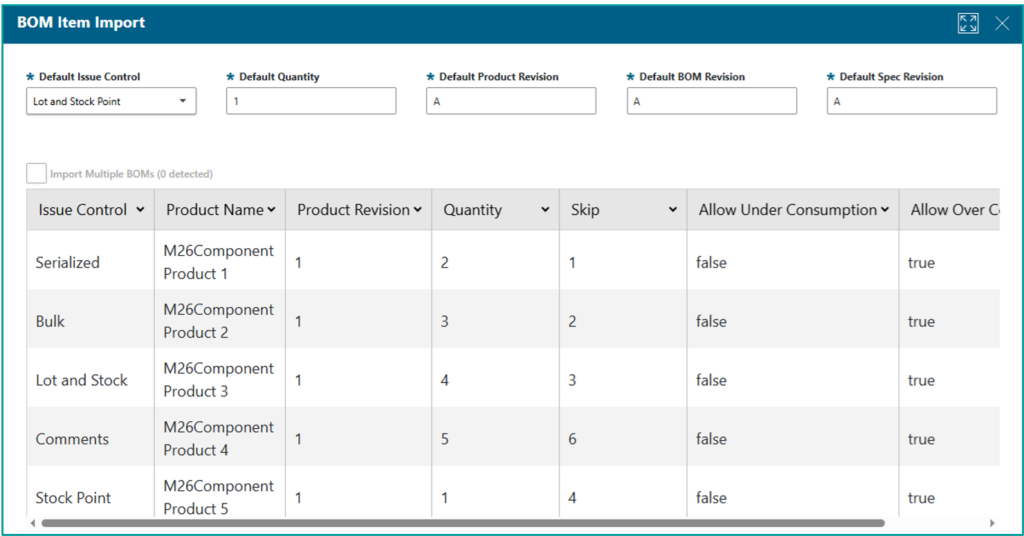

Bill of materials (BOM) import

• Adds the ability to import a BOM through a comma separated value (CSV) import file
• Import wizard guides the user through the process
• Any product instance that does not exist will be created

RESTful API enhancements

• Extends action attributes to shop floor transactions by adding support for list item and advanced perform event attributes
• Provides the ability to manage cross-origin resource sharing (CORS) via configuration
• Enhances file uploading
• Reduces the time required to generate the entity data model (EDM)
• Improves error logging with a new user interface
• Delivers discoverability enhancements with a new type attribute and optimized Swagger schema

Power BI reports

• Delivers a new set of reports
  • Material inventory and queue report
  • Training plan
  • Training requirements
  • Training records by requirement
  • Training records by employee

Additional enhancements

Updates the styling of several portal controls, including:

• Hover, pressed and focused states on the accordion control
• Empty page state
• Login page fonts and spacing

Also:

• Disables login button until user credentials are entered
• Enlarges checkboxes and radio buttons to be more touch friendly
• Adds the focus state to the breadcrumb on the manufacturing audit trail page

Technology enhancements

• Chrome 134+
• Edge Chromium 134+
• Siemens Mendix runtime server 10.18.0
• Siemens SPC common component 2412
• Axios 1.7.9
• Express js 4.21.2
• Npgsql 8.06
• Xyflow 12.3.4

Want to learn more? Opcenter Execution Medical Device and Diagnostics serves as the foundation for top-tier global manufacturers and product innovators that want to enable rapid change, lean manufacturing, consistent quality output, rapid new product introduction (NPI) and higher profit margins. Find out more about Opcenter Execution Medical Device and Diagnostics.
