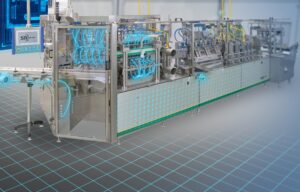

Complete electrical engineering in NX Industrial Electrical Design

The design of industrial equipment requires the design of the electrical and pneumatic systems used to bring them to life. With NX Industrial Electrical Design you have all the tools you need to get the job done.
Whether you are creating IEC, ANSI or ISO normed schematics, we offer a libary of standard, normed symbols that you can use to immediately get started with your electrical design process. Create schematics in single or multi-line formats, as you require and leverage object based engineeering, providing a single object with multiple representations. This allows for combined electrical and pneumatic design in one tool, with easy cross-referencing between representations.
