The current space market has shifted from exploration to exploitation. Commercial profitability now drives the space economy. The need for reusable technologies, compressed development cycles and aggressive price targets pushing verification towards simulation over physical testing, these 3 are the primary drivers.

Spacecraft structural testing is expensive, schedule-sensitive, and difficult to repeat. By the time hardware reaches the test floor, engineers need confidence that the planned modal test will generate data that can support meaningful finite element model correlation. A poor sensor layout can lead to weak modal observability, inconclusive correlation, and costly re-test decisions. Our customers have reported weeks of delays in launch as well as unscheduled expenses in their programs because of poor upstream pre-testing practice.

MayaHTT can help you reduce your risk of costly re-testing by leveraging state-of-the-art pre-test, correlation and model update simulation software in conformance with the latest NASA Spacecraft and Payload Analysis Standard 5002 Rev B.

In this blog, we will cover:

• Why sensor placement alone is not enough to guarantee a correlation-ready modal test.
• How AutoMAC, self-orthogonality, pseudo-orthogonality, and cross-orthogonality each reveal different pre-test risks?
• What failing orthogonality metrics suggest about sensor layout, reduced mass representation, and modal basis quality?
• How to use pre-test diagnostics to improve instrumentation plans before hardware reaches the test floor?

NASA-STD-5002 Revision B makes this pre-test step more important. To comply with Section 4.9.1, “Pre-Test Analysis,” the reduced model accuracy should be evaluated before test, including mass-orthogonality checks. This matters because a modal test does not observe the full finite element model. It observes the structure only through the selected sensor degrees of freedom. A sensor layout may look reasonable geometrically. It may even produce an acceptable AutoMAC matrix. But that does not automatically mean the selected test degrees of freedom preserve the independence of the target modes when evaluated through the reduced mass matrix.

Pre-test validation answers a more important question:

Will this planned modal test provide data that can support reliable model correlation?

From Sensor Placement to Test Readiness

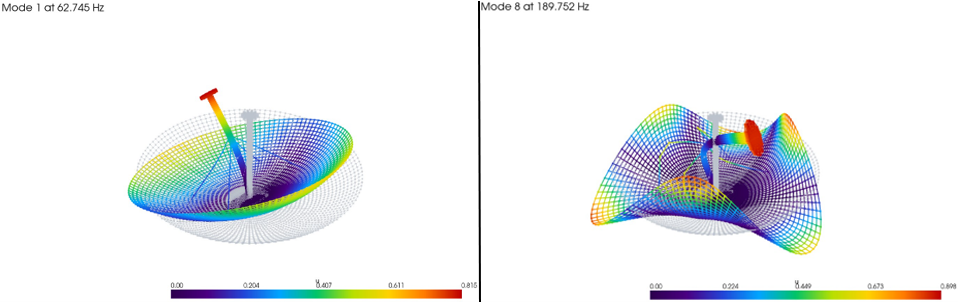

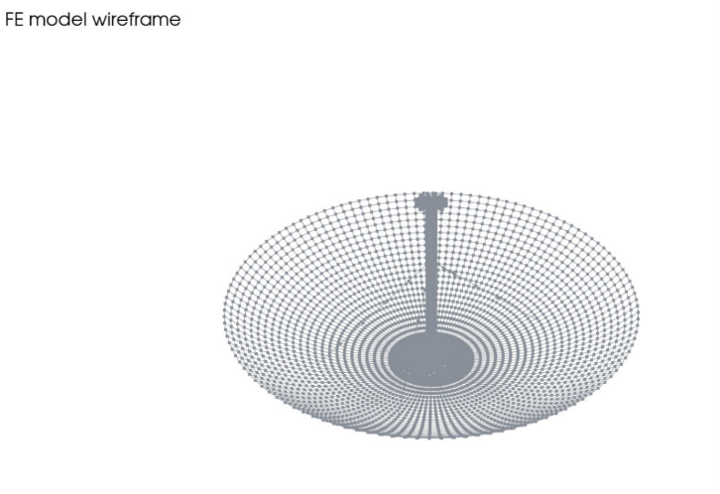

The workflow begins with a finite element modal survey. In the example considered here, the test article is a spacecraft antenna subcomponent modeled using Simcenter Nastran. A Simcenter NASTRAN normal modes analysis extracts the first twenty target modes.

A modal survey shows effective mass participation distributed across the three translational directions. More than geometric coverage or engineering intuition, the test plan sensors must distinguish the target modes and provide sufficient modal observability. Failure to take this into account could result in limited test coverage leading to low correlation of the actual model with the digital model.

Mode	frequency_hz	eff_mass_x_percent	eff_mass_y_percent	eff_mass_z_percent	eff_mass_percent
1	62.74483871	0.000446219	2.081454576	2.941845102	5.023745897
2	77.72774506	2.083181437	0.000186762	2.940725097	5.024093297
3	96.54924011	0.590213956	0.540761881	3.852583949	4.983559786
4	135.5568695	0.427739325	1.248315579	3.328246178	5.004301082
5	135.718338	0.230741657	2.671207743	2.151281336	5.053230736
…
15	250.7327881	1.781826801	0.344090554	2.857635504	4.983552859
16	251.076828	1.653143406	0.47579126	2.855593021	4.984527687
17	300.6558228	0.740236564	0.71739503	3.524399358	4.982030952
18	301.4995728	0.770613323	0.708717722	3.502926195	4.98225724
19	314.1859131	2.48424521	2.479744819	0.020483371	4.984473401
20	344.6026917	0.078002923	0.040037003	4.867033889	4.985073814

Several sensor-placement methods are evaluated for a target set of forty uniaxial sensors.

Min-MAC & MODMAC	Can the sensors distinguish one mode from another?
Effective Independence with the Fisher Information Matrix	Can the sensors provide enough independent information to estimate the target modal basis?
Modal Kinetic Energy	Are the sensors located where the structure actually moves?
Information Entropy Index	Is there a balance between response strength and broad modal coverage?

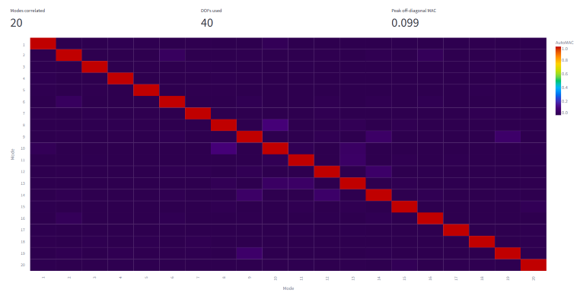

In the antenna example, Min-MAC and MODMAC provide the best modal discrimination. Here, the Min-MAC sensor set is selected for mass-orthogonality validation.

Why AutoMAC Is Not Enough for Pre-Test Validation

A clean AutoMAC matrix is valuable, but it is not the end of pre-test validation. AutoMAC shows whether the target modes appear distinguishable through the selected sensor degrees of freedom. It does not fully prove that the reduced mass operator and retained test degrees of freedom preserve modal independence for correlation.

This is where mass-orthogonality validation becomes essential. The NASA-STD-5002B-style target is an identity-like orthogonality matrix. Diagonal terms should be close to one, and off-diagonal terms should be small. Low off-diagonal terms mean the modes remain distinct. Large off-diagonal values indicate mode coupling or ambiguity. Weak diagonal values indicate that a mode is poorly represented by the selected degrees of freedom. Three complementary checks are used: self-orthogonality, pseudo-orthogonality, and cross-orthogonality.

Metric	Possible reason for failure	What to inspect or change
Self-orthogonality	Selected sensor DOFs do not preserve modal independence well enough, or the reduced analytical mass matrix does not represent the retained test DOFs accurately.	Sensor placement, modal observability at the chosen DOFs, Guyan reduction setup, retained DOF definition, and reduced mass matrix extraction.
Pseudo-orthogonality	Reduced A-set modal basis is not properly mass-normalized or the retained-DOF reduction introduces inconsistency in the reduced modes.	A-set extraction, reduced eigenvector generation, mass normalization, retained DOF mapping, and reduced model assembly.
Cross-orthogonality	Reduced basis does not represent the same physical modes as the unreduced FEM cleanly, often due to mode pairing errors, mode mixing, or insufficient capture of coupled modes.	Mode pairing, closely spaced modes, sensor coverage near modal anti-nodes, retained DOF selection, and regenerate or refine the reduced modal basis.

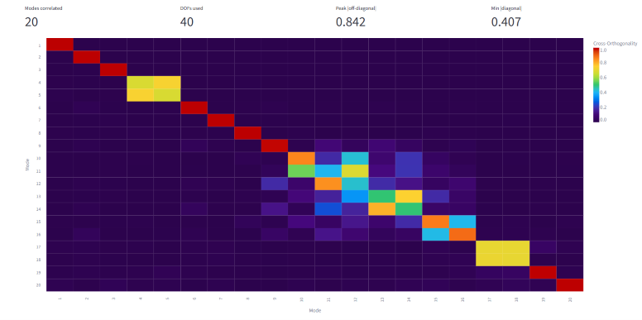

This final check is especially important because it can expose mode pairing issues, mode mixing, or reduction mismatch that are not obvious from AutoMAC alone. In the antenna example, cross-orthogonality fails the target criteria. The matrix indicates that some modes are not represented cleanly by the selected sensor set and reduced modal basis. Closely spaced or coupled modes may require additional sensors, repositioned sensors, or changes to the retained DOF set, all leading to delays & extra test costs. This is the key value of the workflow: it identifies a test-correlation risk before the modal test is performed.

What the Engineer Learns Before Test

The result is not just “pass” or “fail.” The workflow provides actionable diagnostics. In the antenna case, the practical recommendation is to add or reposition sensors near the anti-nodes of weakly represented modes, improve the capture of closely spaced mode pairs, regenerate the reduced basis, and repeat the orthogonality checks before releasing the test plan.

Conclusion

As presented here, a proven pre-test modal validation as per NASA Standards is presented. The antenna example shows why mass orthogonality matters. A Min-MAC-based sensor set produced strong modal discrimination and passed self- and pseudo-orthogonality checks. However, cross-orthogonality revealed mode mixing and weak modal representation that would need to be addressed before test.

NASA-STD-5002 Rev. B added 4.9.1 to catch reduced-model/mass-matrix and mode-shape problems before spending time on modal testing, and to ensure the reduced model is accurate enough for later test-analysis correlation and loads prediction.

A successful modal test begins before the test article reaches the lab. It begins with a validated sensor layout, a trustworthy reduced mass matrix, and unmistakable evidence that the selected test degrees of freedom can preserve the modes that matter. Poor sensor layouts often lead to inconclusive test and costly re-test decisions adding delays to the program.

To avoid the costly pitfall of re-testing without planning, you can reach out to Maya HTT to explore how we can help you reduce testing risk, duration, and cost.
