What’s new in NX for Manufacturing 2606 (June 2026)
NX for Manufacturing 2606 is here, bringing a set of powerful enhancements to NX Manufacturing and NX X Manufacturing that make part production easier and more efficient than ever.
From introducing new CAM-only versions in NX X Manufacturing, to improvements in NX CAM that accelerate programming, improved additive capabilities for improved build quality, enhanced On-Machine Probing and inspection improving first-time-right rates, and stronger data management to reduce manual setup effort and align data across the environment, this release brings important improvements across the entire part manufacturing process.
What’s new in NX X Manufacturing
NX X Manufacturing is the full NX for Manufacturing toolset, downloadable and installable on local machines, with cloud-connected services. Users get offline access and full performance while eliminating traditional barriers to adoption. NX X manufacturing provides full NX manufacturing capability through the cloud, with lower total cost of ownership and faster time to value.
Teams can work via a local desktop install or stream through the optional Remote Add-on, giving distributed teams and contractors secure, on-demand access without a full local deployment. Meanwhile, centralized license management, automatic updates, and cloud-based configuration mean fewer support tickets, lower admin overhead, and consistent tooling across all sites. The end result is that teams can share and co-work on manufacturing data ad-hoc, with built-in security and governance. This eliminates risky workarounds like email, USB drives, and shared folders.
NX X Manufacturing is built on the same proven architecture and data model as on-premise NX, with zero compromise on capability. It integrates seamlessly across the Siemens Xcelerator portfolio, protecting existing investments with a straightforward migration path.
CAM-only options
A few months before the introduction of NX 2606, new CAM-only packages were introduced for NX X Manufacturing. These new packages are a perfect, lower cost option for organizations where design is done with a non-Siemens package or by another department or company.
These new CAM-focused packages have the same Standard, Advanced, and Premium tiers as the original NX X Manufacturing packages that included CAM. They also all include part management, cloud-based licensing, the ability to add functionality through tokens, and the other major functionality from the original packages without the access to CAD functionality.
The end result is a full suite of NX X Manufacturing packages either with or without CAD functionality so that companies can better suit their software to their actual usage.
Integrated data management with Teamcenter X in NX X Manufacturing Viewer
NX X Manufacturing now has full Teamcenter X compatibility establishing a centralized, managed data pipeline that connects CAM programming directly to shop floor execution. The end result is seamless CAM data access combined with enhanced traceability. By connecting the Manufacturing Viewer to Teamcenter X, we create a single source of truth for machining data. Everyone from the CAM programmer to the machine operator works from the same, version-controlled files.
The NX X Manufacturing Viewer and Teamcenter X now speak the same language. This means .nxmv files are now recognized and managed within the Teamcenter X ecosystem. They can be stored, versioned, searched, and retrieved just like any other managed data object.
CAM programmers can now perform a single-click CAM data export that generates an .nxmv file and stores it directly in the Teamcenter X database. The workflow is now fully integrated and traceable from the moment of export. Similarly, shop floor users can locate and download .nxmvfiles directly from Active Workspace and open them in the Manufacturing Viewer. This creates a fully traceable chain from programming to execution.
In summary, this delivers centralized data management, seamless shop floor access, improved collaboration between programming and manufacturing teams, and overall efficiency gains. It is particularly valuable in high-volume or multi-shift environments where multiple operators need reliable access to the latest machining instructions.
NX X Manufacturing Viewer now has IPW visualization
IPW visualization in the Manufacturing Viewer bridges the gap between what the CAM programmer intended and what the operator actually sees on the shop floor. With IPW visualization, they can both inspect the actual state of the material at any point in the machining sequence, giving them a much richer understanding of how the workpiece evolves.
Rather than guessing what the part should look like between operations, operators can now see it in full 3D at every stage. This is transformative for quality assurance and process validation on complex parts. Operators can step through the in-process workpiece sequence and see exactly how the material changes after each operation. This helps them verify expected material removal, catch potential issues early, and confirm that the intermediate shapes match expectations before proceeding to the next step.
On the CAM programming side, the workflow is seamless. Programmers export CAM data along with IPW using the integrated Manufacturing Viewer Extractor. The IPW data is bundled directly into the .nxmvfile, so no additional steps or separate files are needed. This tight integration means the shop floor always gets complete data in a single package.
The result is fully interactive 3D IPW visualization for shop floor users. They can rotate, zoom, and inspect the workpiece from any angle at any machining stage. This is particularly valuable for complex multi-operation parts where understanding the material state between operations is critical for quality assurance.
NX X Manufacturing Viewer now has turning support
NX X Manufacturing 2606 brings turning support to the NX X Manufacturing Viewer. With this enhancement, turning operations now receive the same rich visualization treatment that milling has enjoyed in previous releases.
Operators working with lathes and turning centers will now have access to the same quality of visual information that milling operators already benefit from, bringing parity across machining types.
This new capability includes full 3D visualization and replay for turning operations. Operators can step through the entire machining sequence, watching tool movement in real time. They can analyze cutting paths, verify the programmed sequence, and identify potential issues before running the actual program on the machine. This replay functionality is especially valuable for complex or unfamiliar parts where visual confirmation significantly reduces setup risk. Furthermore, with the viewer reports, Operators get all the information they need (speeds, feeds, depth of cut, tool specifications) in a single view for process optimization and traceability.
Turning support for the NX X Manufacturing Viewer in 2606 improves turning process understanding, reduces setup times through visual verification, and enhances shop floor confidence. It makes the Manufacturing Viewer a truly complete solution for mixed machining environments that include both milling and turning.
AI Make Machining Suggestion with history-free suggestions
One of the most exciting enhancements in NX X Manufacturing 2606 is a new Generative AI capability within the AI Make Machining Suggestion feature. Until now, AI suggestions were shaped by historical machining data and existing tool libraries. This release changes that dynamic by adding a completely independent, history-free third option.
The overarching goal here is to expand machining possibilities using unbiased Generative AI. Rather than limiting users to what has worked before, this feature encourages exploration of alternative strategies that may be more efficient, produce better surface finishes, or reduce tool wear. It represents a shift from reactive to proactive machining intelligence.
Specifically, the system now introduces a third Generative AI suggestion for every machining feature. The first two suggestions continue to draw on historical patterns and existing tool libraries, but this third option operates completely independently. It analyzes the feature geometry from scratch, without any bias from prior machining history, and proposes a fresh strategy. This is particularly valuable for complex or unconventional geometries where traditional approaches may not yield optimal results.
Another key advancement is automatic parametric tool creation. When the system generates a machining suggestion that requires a tool not available in the user’s library, it no longer stops there. Instead, it automatically creates a fully parametric tool definition tailored to the specific feature geometry. Now, every suggestion is immediately actionable.
The result is truly unbiased, history-free machining strategies. By deliberately setting aside past patterns, the AI can surface approaches that experienced users might overlook due to established habits. This gives programmers a broader perspective on what is possible, enabling more informed decision-making and potentially unlocking significant improvements in cycle time, quality, and tool life.
What’s new in NX CAM
NX CAM is engineered to maximize throughput, minimize errors, and deliver unparalleled precision across the full machining workflow. NX 2606 brings enhancements to process patterning with tool change optimization, background toolpath generation for uninterrupted multitasking, intelligent fixture automation for streamlined setup management, dedicated front and back chamfer mill tool types, expanded planar deburring with new tool support, enhanced face mill zig zag capabilities for multi-face operations, and native rough turn adaptive strategies for hard-material machining. Together, these improvements accelerate programming, reduce cycle times, and extend tool life, transforming how parts are manufactured.
Expansion of new functions from NX 2512
NX 2512 introduced several new functions that have now been expanded in NX 2606.
Background Generate moves toolpath computation to a secondary NX process so programmers can continue working in the main session without interruption.
Status indicators track progress and queued operations in real time. Intelligent dependency management protects parent operations from unintended changes while generation runs. The process starts and stops through a simple context menu.
This eliminates idle waiting time during toolpath generation which is one of the most common productivity bottlenecks in complex CAM programming. For parts with dozens of operations, toolpath generation can take minutes per operation. Background Generate lets programmers queue up multiple operations and continue editing geometry, adjusting parameters, or setting up the next part while the system computes in parallel.
The practical impact scales with part complexity. A shop programming multi-setup aerospace components or mold tooling with hundreds of operations sees the largest gains, often recovering hours of productive programming time per week.
Fixture Automation uses intelligent positioning algorithms to automatically align fixtures with workpieces, replacing manual positioning.
Dynamic part repositioning within fixtures provides immediate visual feedback of setup changes. Simplified dialogs for both adding fixtures to the library and inserting them into setups make fixture management faster and more accessible. The system supports a wide range of fixture types (vises, clamps, tombstones, and custom fixtures) all managed through the same streamlined interface.
The net result is significantly reduced setup time, letting programmers focus on high-value programming rather than repetitive fixture alignment tasks. For multi-setup parts where fixtures must be repositioned between operations, the time savings multiply. The fixture library also promotes standardization across a shop. Once a fixture is defined and validated, any programmer can reuse it with confidence.
Front and back chamfer mill tool
Cloud Connect Tool Manager now includes a dedicated tool type for front and back chamfer mill tools. The new purpose-built interface provides labeled fields for front angle, back angle, cutting diameter, and overall length. ISO-standard naming conventions are applied automatically, ensuring consistency across the tool library and simplifying communication with tool vendors and shop floor personnel across manufacturing sites.
Dedicated chamfering-specific geometry parameters that were unavailable in the generic tool type improve tool definition accuracy and simulation results. More accurate tool definitions mean more reliable collision checks and material removal verification during simulation, reducing the risk of errors reaching the shop floor.
For shops that regularly perform chamfering operations, this eliminates a workflow that was previously tedious and error-prone. Every time a programmer needs a chamfer mill, they save time on definition, reduce the chance of a geometry mismatch, and produce a tool record that is consistent and portable across the organization.
Expanded planar deburring
NX 2606 expands Planar Deburring with support for Front Chamfer Mills, Back Chamfer Mills, Dovetail Mills, and Spherical Mills. This gives programmers the right tool geometry for each specific edge condition instead of the limited set available previously.
A single operation can now deburr topside, bottom side, or both sides of a planar part, eliminating the need for separate operations per side.
New path settings include overlap distance for closed contours to ensure complete, gap-free coverage. Height control for engage and retract motions reduces the risk of tool marks or damage and a new linear engage type provides a smoother, more predictable approach to the workpiece compared to the default entry behavior.
Combined, these changes deliver better edge quality with fewer operations and less programming time — particularly for parts that previously required multiple setups or workarounds to fully deburr.
Enhanced Face Mill Zig Zag
NX 2606 adds multiple face selection to Face Mill Zig Zag when the blank type is set to thickness. A single operation now handles multiple faces, with user-defined or system-optimized cutting order to minimize non-cutting motion.
New controls for handling motion across voids and customizing cut angles give finer control over tool engagement and surface finish on parts with holes, pockets, or other surface interruptions. When facing parts with surface gaps, these controls determine how the tool behaves at each boundary, for example whether it lifts, traverses, or maintains contact. This directly affects both surface quality and tool life.
The result is fewer operations, less manual ordering, and better tool behavior control across complex geometries. This all contributes directly to shorter cycle times on the machine. For multi-face parts that previously required separate operations per face, the consolidated workflow can cut programming time significantly while also reducing non-cutting machine motion.
Native adaptive roughing with Rough Turn Adaptive
Rough Turn Adaptive brings native adaptive roughing to NX CAM for hard materials like Hastelloy and Inconel — a capability that previously required third-party solutions. The adaptive strategy maintains consistent chip thickness throughout the cut, which is critical when using expensive ceramic inserts on tough alloys.
Consistent chip load means ceramic inserts wear evenly rather than absorbing localized stress. This directly extends tool life and reduces costly insert replacements. Smooth engage and retract motions minimize impact shocks that can chip or crack brittle inserts, and corner cleanup passes ensure even material removal to prevent uneven wear patterns.
The result: higher material removal rates, longer tool life, and controlled cutting forces throughout the operation. This is particularly impactful for aerospace, energy, and medical device manufacturing where hard-material turning is routine. Ceramic insert costs can run hundreds of dollars per edge, so extending insert life by even 20–30% represents significant cost savings across a production run.
Built natively into NX CAM, this integrates with simulation, post-processing, and machine setup in a single workflow. Customers who previously relied on external adaptive turning solutions can consolidate into a single toolchain with tighter integration and better traceability from programming through to the shop floor.
What’s new in Additive Manufacturing
NX Additive Manufacturing spans both fixed-plane and multi-axis additive workflows with a focus on build optimization and process control. This section covers differentiated support regions with per-region self-supporting angles in fixed-plane additive, algorithmic part base geometry for improved heat conduction and reduced stress, continuous rotary non-cutting moves for round parts in multi-axis additive, and user-defined finish pass direction control for optimized machine kinematics. Together, these enhancements reduce material consumption, improve build quality, and give programmers finer control over every stage of the additive manufacturing process.
Per-region self-supporting angles for support structures
Support structures in additive builds consume material, add print time, and require post-build cleanup. The self-supporting angle, typically around 45 degrees, determines which surfaces need support.
NX 2606 enables per-region self-supporting angles within the Create Supports command. A 40-degree threshold can protect delicate features while a 50-degree threshold minimizes supports on more robust areas. Isocline-based intervals further segment the part into overhang-severity zones, each receiving appropriate support density, for example, light lattice for mild overhangs, dense blocks for severe ones.
For a complex aerospace bracket with both gentle curves and sharp overhanging flanges, this means the gentle curves get minimal, easy-to-remove supports while severe overhangs get the robust structures they actually need.
Finer support control reduces material consumption, print time, and post-processing labor. Removing excess supports after a build is one of the most time-consuming manual steps in additive manufacturing, so reducing unnecessary supports directly cuts that labor. For production environments running multiple builds per week, these savings in material, machine time, and post-processing effort compound quickly into measurable cost reductions.
Algorithmically modeled part base design
The build plate anchors the part during printing and acts as a heat sink. Traditional base supports with sharp edges create stress concentration points, leading to uneven force distribution, thermal stress, distortion, and potential build failures.
NX 2606 uses Algorithmic Modeling, a rules-based design framework that defines geometry through logic and parameters rather than manual sketching, to automatically generate an optimized base connection geometry. Instead of sharp, flat transitions, the edges are curved with precisely controlled filleted offsets. The larger contact area and smoother thermal path improve heat dissipation, reducing thermal gradients and residual stress in the finished part.
The new Algorithmic Part Base support type ships in the NX Reuse Library ready to use out of the box. Advanced users can also create custom parametric support strategies using the Algorithmic Modeling framework and Logic Editor in NX AM, then save them back to the Reuse Library for team-wide sharing. This makes it a living, evolvable system rather than a fixed set of options.
The result of this new functionality is improved build quality through better thermal management, fewer build failures from reduced stress concentrations, and a flexible framework that adapts as additive processes evolve.
Rotary non-cutting moves for multi-axis printing
For cylindrical parts with surface bosses, multi-axis additive previously required linear retracts between each boss. These time-consuming non-cutting moves included abrupt start-stop cycles. NX 2606 replaces this with continuous rotary motion: the part spins along its center axis while the deposition head deposits material as each boss location passes underneath, eliminating retracts entirely.
Circular NCMs complement the rotary additive moves by keeping non-cutting transitions on the same rotary path — the machine maintains its rotary motion even when not depositing material, so transitions between bosses are smooth arcs rather than jerky stop-retract-reposition sequences. Rotary spline NCMs provide smooth height adjustments between bosses at different positions on the cylinder, avoiding abrupt step changes that stress the equipment.
Continuous rotation eliminates retracts, reduces cycle time, extends machine life, and improves deposition consistency — taking full advantage of the part’s natural cylindrical symmetry. This approach fundamentally changes the machine kinematics for round part geometries, and is primarily used in Rotary Buildup operations where multiple bosses or features are distributed around a cylindrical surface.
User-defined finish passes in multi-axis additive
In multi-axis additive, infill and finish passes each follow a rotational direction. Previously, the system determined finish pass direction automatically with no user override. When the finish direction mismatched the infill direction, the machine had to reorient between passes, resulting in wasted kinematic motions that add no build value.
NX 2606 adds explicit direction control for finish passes in three Multi-Axis Additive operations: 3D Freeform Coating, 3D Freeform Buildup, and 3D Freeform Gradient Buildup. These are all operations whose toolpaths wrap around curved surfaces where rotational direction is a meaningful parameter. Options include Clockwise (ideal when infill also runs CW), Counter-Clockwise (same concept for CCW strategies), and Alternating CW/CCW (switches direction on successive layers for better surface finish or more even material distribution). Matching finish direction to infill direction eliminates unnecessary repositioning at every transition.
The result is shorter cycle times, more consistent deposition quality, and reduced mechanical wear. By eliminating direction-change repositioning at every infill-to-finish transition, the machine maintains smoother, more continuous motion throughout the build. For production environments running repeated builds, even small per-transition savings compound into meaningful gains over a full shift.
What’s new in Part Manufacturing Data Management
Part Manufacturing Data Management focuses on streamlining how manufacturing data is managed across Teamcenter, Active Workspace, and the Manufacturing Resource Library. New data management capabilities include enhancements to automated template management during installation, resource assignment workflows directly within Active Workspace, a dedicated MRL configuration utility for connecting NX Manufacturing workflows, and embedded Teamcenter classification capabilities within NX X Manufacturing. Together, these improvements reduce manual setup effort, consolidate key workflows into fewer steps, and ensure consistent, version-aligned data management across the manufacturing environment.
Automated importing of manufacturing templates in Teamcenter
Templates underpin every managed-mode NX Manufacturing workflow. CAM, CMM, AM, and MLP all rely on them. Teamcenter 2606 automates the full import of templates. The standard template set, NX CAM, CMM Inspection, Additive Manufacturing, and Machine Line Planner, is imported automatically during both fresh installation and system updates, and is always aligned to the current version level. Item IDs and names embed the unit system, metric or inch, and the corresponding NX version number, so individual templates are easy to identify and manage across the organization.
For an enterprise running multiple NX seats across sites and rolling forward through frequent upgrades, this means template provisioning happens with the installer and is version-correct, unit-system-correct, and consistent across every seat, with no separate import step to remember.
A significant source of deployment overhead and configuration risk disappears, and managed-mode workflows start from a reliable, version-aligned foundation. On programs with frequent NX upgrades, those reductions in administrator time and configuration error compound quickly into measurable productivity gains.
Assign/Unassign resources to activities within Active Workspace
CAM setup preparation lives or dies on getting the right resources assigned to the right activities. Teamcenter 2606 brings resource assignment into the Part Manufacturing tab in Active Workspace. Selecting an activity within an operation in table view shows all assigned resources in the overview panel of the secondary area. Dedicated functions assign and unassign resources directly from that view, with both actions supporting bulk operations across multiple resources in a single step. New resources are picked from available elements within the active CAM setup, and existing assignments are removed with a straightforward confirmation.
For a CAM programmer iterating after a simulation run, this means a quick adjustment happens right where the activity lives, without leaving the setup view or losing context, just swap a tool, drop a fixture, or add a probe.
Fewer navigation steps, faster turnaround on resource changes, and a more focused workflow that keeps all relevant actions in one place. Across the many small adjustments a complex setup demands, those reclaimed seconds compound quickly into measurable productivity gains.
Manufacturing Resource Library configuration utility
Designcenter 2606 ships an MRL NX Configuration Utility from the Designcenter Add-Ons page that connects NX Manufacturing to the Manufacturing Resource Library in four guided options. The first covers NX CAM, where each resource library (tools, machines, devices, fixtures, and feeds and speeds technology data) can be individually set to use either the ASCII library or the MRL database, with all relevant files copied to the appropriate folders under the MACH directory. The second configures CMM Inspection for MRL usage across tools, machines, and devices. The third generates a start script for native NX that launches CAM with MRL Connect enabled, requiring the Teamcenter Client Cache, a Java runtime, and the server connection details. Finally, the fourth option configures Drafting by registering MRL setup sheet template files through the PAX file.
For an organization rolling MRL out across multiple seats and sites, this means setup is a standardized run through the utility. File placement and script generation are handled and per-library choices between ASCII and MRL are made deliberately instead of through manual edits.
A major source of deployment risk and lost troubleshooting time disappears, and MRL connectivity becomes a repeatable, low-error step in every install. On programs deploying across many sites, those reductions in setup error and administrator time compound quickly into measurable productivity gains.
Teamcenter Classification within NX X Manufacturing

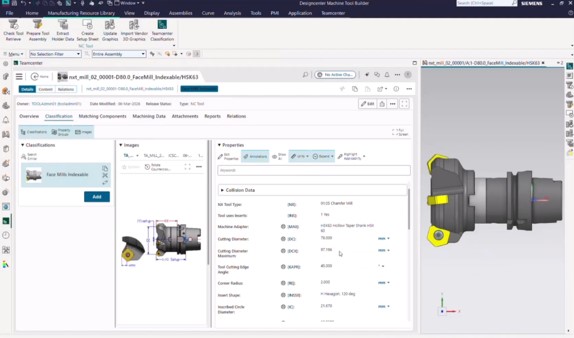

NX X Manufacturing 2606 adds a Teamcenter Classification command in the Manufacturing Resource Library ribbon, embedding the Active Workspace classification interface directly into NX X Manufacturing. The feature supports two workflows. In the first, users view the classification details of an already classified part or manufacturing resource, verify the assigned parameters, and modify classification attribute values, all without leaving the application. In the second, users classify a resource that has not yet been assigned to a class, such as a new milling machine to register in the MRL: select the appropriate class, fill in the relevant attributes including a description and postprocessor file reference, and commit the classification directly to the MRL database.
This means an engineer adding a new milling machine to the MRL can select the class, fill in attributes, and commit the record inside NX X Manufacturing, with no detour to another application.
Faster, more consistent classification of manufacturing resources and a workflow that stays in one tool. On organizations scaling MRL usage across multiple teams or sites, those reductions in context switches and data-entry inconsistencies compound quickly into measurable productivity gains, especially for shops maintaining large resource libraries.
Technology data for manufacturing resources within Active Workspace
In Active Workspace for 2026, Part Manufacturing Data Management gains a dedicated Machining Data tab that surfaces all machining data records assigned to a selected tool assembly directly from the tool assembly view. Each dataset can be viewed and edited from the tab without navigating elsewhere. A compare mode lists all dataset attribute values side by side for a clear, structured overview, property filters hide non-matching attributes, and a dedicated filters section narrows results by specific attribute values.
For a CAM programmer setting up a complex tool assembly with dozens of associated records, this means a focused tab view, side-by-side comparison, and targeted attribute filters. This results in significantly faster access to the right machining parameters, fewer errors from selecting the wrong dataset, and a workflow that stays inside Part Manufacturing Data Management. Across the many tool assemblies a busy shop touches, those reclaimed minutes compound quickly into measurable productivity gains.
What’s new in NX On-machine probing
NX CAM On-Machine Probing in 2606 is all about bringing measurement, alignment, and adaptive correction directly into the CAM workflow. New capabilities include integrated probing routines for part and tool, in-process alignment and feature inspection, automatic tool correction through Cut-Measure-Cut cycles, and standardized postprocessor layers that drive closed-loop machining decisions. Together, these capabilities reduce reliance on shopfloor macros, improve first-time-right rates, and bring the CAM environment a meaningful step closer to fully autonomous, self-correcting machining.
Built-in support for third-party tool-setting cycles
NX 2606 brings built-in support for third-party tool-setting cycles from Blum-Novotest and Renishaw, covering both non-contact laser-based and contact touch-probe workflows. Supported controllers include Fanuc, Sinumerik, Heidenhain, Mazak, Okuma, Makino, Brother, Fagor, and Mitsubishi covering the vast majority of machines in the field.
The automation covers the full tool-setting lifecycle: initial tool length and diameter measurement, ongoing wear compensation updates, and breakage detection checks between operations. The machine catches broken or worn tools before they damage a part, without requiring custom macro code.
Cycle output integrates directly into the postprocessor layers and is accessible through Post Hub. The tool-setting calls are generated through the same postprocessor infrastructure as all other NC output, so they follow the same customization and validation pipeline. Programmers access the cycles just like any other operation in NX CAM, with no special workflow or separate tools required. For shops running multiple controllers, a single CAM-driven approach to tool setting eliminates the need to maintain separate macro libraries per machine.
Enhanced probing with TCL logic
NX 2606 allows TCL logic snippets embedded in NX CAM Notes to drive adaptive NC output through the postprocessor layer. This bridges the gap between native CAM expressions and complex probing workflows without hand-editing NC code.
TCL snippets execute as Post configurator commands during NC output generation, enabling custom calculations, conditionals, and variable assignments alongside probing operations. The NC output adapts based on measurement results and programmed logic, not just static templates, which is what makes probing workflows truly intelligent rather than just automated. Operation index referencing using relative indices (−3, −2, −1) to point back to earlier measurements makes templates reusable across different parts and setups without modification, because the references are relative rather than absolute.
Things like derived-value calculations were previously only possible through manual NC code insertion or external scripts. Now these can be embedded in the CAM program and generated automatically during posting, keeping the entire probing workflow maintainable, auditable, and portable across machines.
Closed-loop CAM automation
NX 2606 integrates probing, alignment, tool control, and adaptive machining into a single CAM workflow. Closed-loop machining is built into the CAM structure itself, not bolted on afterward.
Tool measurement and breakage checks are embedded directly in the NC output flow through postprocessor layers making them consistent, repeatable, and auditable. Instead of relying on separate shopfloor macros or manual insertions, the programmer includes these operations in the CAM program and the postprocessor handles the rest. The system supports Cut-Measure-Cut machining with automatic tool correction after inspection: machine a feature, measure it, apply corrections, and re-machine within one automated NC sequence without operator intervention.
Complex machine-specific logic runs through standardized postprocessor layers rather than manual NC code edits. This makes closed-loop manufacturing practical for daily production use, not just a specialized capability. For shops pursuing higher first-time-right rates and tighter tolerances, integrated probing and adaptive correction within the same CAM workflow is a significant step toward fully autonomous machining.
What’s new in Assembly Line Planer X
NX Assembly Line Planner (ALP) focuses on giving production planners precise control over how products are defined, sequenced, and connected to downstream execution. This section covers manual Occurrence Type assignment at the operation level, multi-operation updates across long product lists, per-product per-operation values written directly back to Teamcenter and retained on reopen, and activation through Customer Defaults while preserving existing automated Teamcenter Preferences behavior. Together, these enhancements align planning decisions with shop floor reality, reduce manual rework across operations, and ensure accurate occurrence type data flows into work instructions, inventory transactions, material flow tracking, and shop floor execution systems.
Snapshots with annotations
Manufacturing intent has to reach engineers, operators, and managers without ambiguity. Capturing that intent has traditionally meant standalone screenshots, lengthy text descriptions, or multiple views that all drift out of sync the moment the plan changes and add manual rework every time a station or operation is updated.
Assembly Line Planner 2606 captures snapshots directly from the manufacturing context (operations, stations, or specific product configurations) and saves them as part of the planning data. The PMI note creation has been extended with multi-object support inside a single annotation, with supported targets including Product Parts, Manufacturing Features, Datum Points, and Item Attributes. A single annotated snapshot can now carry what previously required several text-heavy views.
Saved snapshots reappear in reports, work instructions, and audit documentation, all managed centrally in Teamcenter. These live as part of the manufacturing record rather than as throwaway images attached after the fact.
Clearer communication of intent translates directly into measurable gains like fewer shop floor errors, stronger operator training material, and faster, more reliable auditing. For plants running many planning changes per week, these reductions in rework and miscommunication compound quickly into measurable productivity gains.
Variant-aware manufacturing feature planning view
Variant-rich products multiply the planning work behind every manufacturing feature because every variant has to be checked, every gap has to be found, every partial coverage has to be tracked. Until now, planners had to switch between configurations and work areas to assemble that picture by hand, and the picture fell apart the moment the configuration changed.
ALP 2606 consolidates manufacturing features and their variant coverage into a single view. Each feature appears with its variant coverage on the same row and expands to reveal full, partial, or missing coverage per variant. A Connected Parts Status indicates whether all required products are assigned to stations, and a built-in filter hides features already accounted for so planners can focus only on the gaps that still need work.
For a body-in-white program with dozens of variant conditions, this means a planner can confirm coverage across the full configuration matrix without leaving the view and immediately see which specific variants are still missing planning on a given feature.
Fewer missed variants, faster planning decisions, and clear accountability across every configuration. On programs where complexity used to obscure the gaps, the gains in throughput and confidence compound across every release of the product.
Operation-specific product positioning
On the shop floor a product does not stay in a fixed position through the station cycle, it moves, reorients, and different variants sit differently on the same fixture. Until now ALP defined position only at the station level, forcing every operation in the station to share an alignment that did not match what was actually happening on the line.

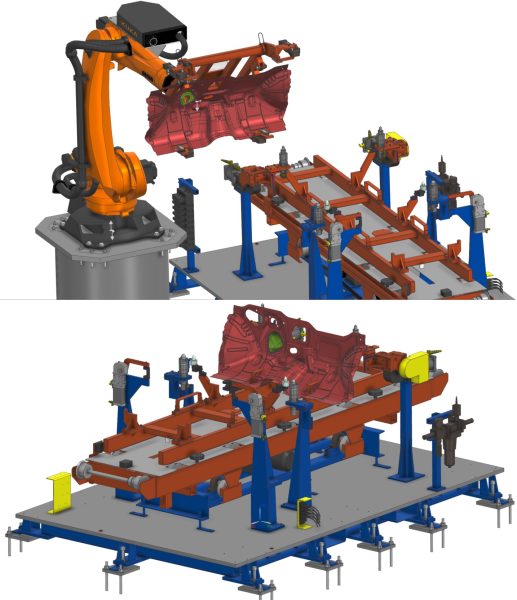

ALP 2606 introduces a unique product position per operation, independent of the station-level alignment. When an operation is activated, the product is automatically returned to the position previously saved for it, supporting consistent and repeatable planning. This is especially valuable for datum-constraining and manufacturing features operations, and for Datum Planning and Snapshot capturing. These are workflows where exact orientation drives the result. For high-precision assemblies, an interactive manipulator allows precise numeric translation and rotation when tight tolerances demand exact placement.
For a body-side weld station running several variants on the same fixture, this means each operation can reference the orientation it was actually planned in. The datum operation aligns to its real datum, the weld operations follow the real product pose, and snapshots capture what the operator will actually see.
More accurate datum definitions, cleaner weld planning, and a faster, more reliable workflow across complex, variant-rich stations are the result. On programs where one fixture serves many operations and variants, these gains in planning fidelity compound directly into fewer corrections downstream.
Extended time unit support for long-duration manufacturing
Long-duration, low-volume manufacturing, common in Aerospace & Defense, runs in shifts and days, not seconds and minutes. ALP 2606 extends time unit support to hours and days, and applies the unit consistently across station load views, Gantt-based representations, and Takt time comparisons, both Target Takt Time and Actual Takt Time. The capability is controlled through Customer Defaults, so organizations decide when and where the larger units appear.
For an aerospace assembly line where individual operations span entire shifts, this means station loads, Gantt visualizations, and Takt comparisons all read in the same units the program already plans in with no mental conversion and no reconciliation with Teamcenter views.
Long-cycle planning becomes intuitive, time visibility lines up across ALP and Teamcenter, and planners can communicate cycle data to manufacturing and engineering stakeholders without translation. On complex programs, the time saved on every review and the errors avoided in every handoff compound quickly into measurable productivity gains.
Product model-driven process variant configuration
Variant configuration for complex product platforms has historically meant manually picking and maintaining long lists of individual product model features for every variant condition. As the product model evolves, that list becomes outdated so engineers have to revisit and update every affected variant condition by hand, and the manufacturing logic falls behind the product it is supposed to describe.
ALP 2606 adds a product model–driven approach alongside the existing feature-based one. The planner selects a product model directly, and the underlying features are pulled in from the model definition automatically so no feature-by-feature maintenance is required. When the product model grows or its options change, the manufacturing logic stays in sync without manual rework. The two approaches are complementary, and variants continue to be created and managed in the Teamcenter Product Configurator so nothing leaves the existing data ecosystem.
For a vehicle platform with hundreds of option combinations, this means a single product model selection captures the full feature set behind a variant condition and a future model update flows straight into the manufacturing logic without revisiting each condition by hand.
The upshot here is less configuration overhead, lower maintenance cost on every release of the product model, and manufacturing logic that reliably tracks the product as it evolves. On platforms with frequent option changes, those savings compound across every release.
Operation-level occurrence type assignment for products
The same part often plays different roles in different operations. It may be consumed during welding, handled during transport, and referenced for tooling, each role implying a different Occurrence Type. Until now ALP did not expose that control at the operation level, so the data flowing to downstream applications could not reflect what was actually happening on the line.
ALP 2606 lets planners manually assign and adjust Occurrence Types per product at the operation level, with bulk updates across multiple operations and products when assemblies are large. Existing automatic behavior from Teamcenter Preferences is preserved and the new manual control is gated by Customer Defaults and off by default, so administrators decide how and when it is enabled. Each assignment is saved per product, per operation, written back to Teamcenter, and retained across ALP sessions for full traceability.
For a body-in-white line where the same panel is consumed at one operation, handled at the next, and referenced for tooling at a third, this means each operation now carries the Occurrence Type that matches the real role of the part. It can be set once, applied in bulk where needed, and persisted back to Teamcenter.
Planning data that matches manufacturing reality like work instruction generation, inventory transactions, material flow tracking, and shop floor execution all receive accurate occurrence type data straight from the plan. On long, variant-heavy lines, the reductions in rework and execution errors compound quickly into measurable productivity gains.
What’s new in Line Designer X
NX Line Designer for 2606 focuses on improving how production lines are planned, modeled, and validated within a connected digital environment. This section covers enhancements to layout authoring and resource libraries, more efficient handling of large line models, smarter reuse of standardized equipment and tooling, and tighter integration with Teamcenter and downstream planning workflows. Together, these improvements shorten the time required to design and update production lines, keep line data consistent across planning and execution, and provide a stronger foundation for simulation, commissioning, and ongoing line optimization.
Application Access within Line Designer
Switching applications in Line Designer used to break the user’s flow because every move pulled them away from the current context and forced a hunt through the full application gallery to find the right tool. Across a working day, those small interruptions add up to real productivity loss.
Designcenter 2606 brings the most-used applications to the title bar. The Applications list provides one-click access to both base and add-on applications without leaving the current context, while Explore All Applications opens the full gallery for broader exploration. Inside the gallery, single- or multi-filter refinement narrows the view quickly, and users can mark Favorites and rearrange tiles so the workspace mirrors how they actually work. A one-click Reset restores the default favorites, filters, and layout whenever the workspace needs to return to a known state.
For a layout engineer who moves between a handful of core tools all day, this means those tools sit in the title bar one click away, in the order they want them instead of behind a gallery that has to be searched every time.
Less friction, faster tool switching, and a workspace that reflects each user’s working pattern instead of a one-size-fits-all gallery. Across a full shift of design work, those reclaimed seconds compound into measurable productivity gains.
Smart cloning with Teamcenter-aligned behavior
Designcenter 2606 aligns cloning behavior in Line Designer with Teamcenter’s Paste Duplicate rules. When a station or other Workarea object is Paste Duplicated, a new station is created with a unique Item ID, while the contained Resources are automatically instanced rather than fully duplicated. The cloned station can be repositioned, extended, trimmed, or have Resources replaced without touching the original. Cloned items are not committed to Teamcenter immediately; they remain in the Line Designer session until the layout is saved, preventing unintended objects from leaking into the database.
Consistent Cloning is enabled by configuring the Paste Duplicate Templates in Teamcenter, typically by an administrator. The PasteDuplicateTemplates preference contains the full list of templates, and MEWorkare.MEWorkarea.PasteDuplicateTemplate must be modified to enable cloning of Lines and Stations with Resources instanced underneath. This administrator-controlled setup applies uniformly across users and sessions without per-user configuration.
For a layout engineer building a multi-station line from a single reference station, this means a Paste Duplicate yields independent stations with unique Item IDs and shared Resource instances that are predictable to edit, predictable in Teamcenter, and committed only when the layout is saved.
Plant structures can be reused flexibly without compromising data integrity, and the copy-and-paste experience in Plant Navigator behaves predictably across the connected Line Designer–Teamcenter environment. On programs built around heavy structure reuse, that predictability compounds into faster line definition and far fewer rework loops with Teamcenter administrators.
Enhanced plant navigator insights
Designcenter 2606 surfaces large assembly information like file names, component counts, and PMI status directly in Plant Navigator with a new set of columns. Part Name shows the operating system file name for quick identification. Component Name displays the object name rather than the file reference, improving readability. Count shows the total number of components in an assembly including the assembly or subassembly itself. Multi-CAD flags components that originate from a JT file, giving immediate awareness of external data sources. PMI highlights components carrying manufacturing information and their current load state, and Precise Structure indicates whether components are loaded as precise.
For an engineer triaging a large plant assembly, this means a single pass through Plant Navigator now reveals which subassemblies carry PMI, which components come in from JT sources, and how heavy each branch of the structure really is without opening individual parts.
The result is fewer context switches, less navigation, and faster decisions when working in large structures. On busy days spent moving across many assemblies, those reclaimed seconds compound into measurable productivity gains.
On-demand component loading within Plant Navigator
Designcenter 2606 introduces progressive loading directly from Plant Navigator. The structure opens minimally loaded, and users selectively load components on demand without switching to the Assembly Navigator. Two options cover the typical needs: open a component partially to load only the exact geometry from the active reference set, without feature data, for visual inspection and navigation tasks; or open it fully to load all component data along with the exact geometry when detailed interaction is required. Both options work regardless of the current assembly load option settings, so behavior is consistent no matter how the assembly was configured.
For an engineer opening a multi-thousand-component plant model just to inspect a single robot cell, this means the structure comes up immediately, and only the cell in question is loaded. It is loaded partially for a quick look or fully when real editing is needed.
This results in lower memory consumption, more responsive interaction on large structures, and tight user control over what is actually loaded at any moment. On daily work with heavy assemblies, the cumulative time saved on every open compounds quickly into measurable productivity gains.
Enhanced work focus through Isolate in Window

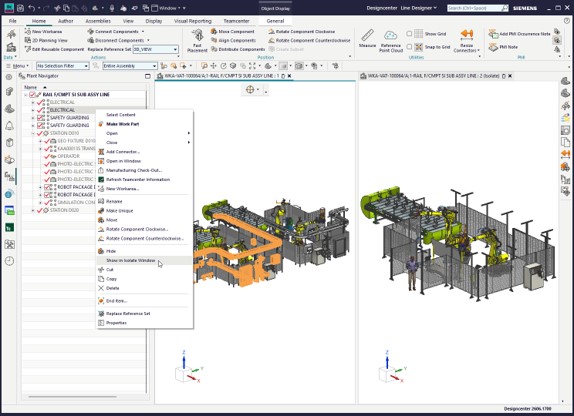

Designcenter 2606 introduces Isolate in New Window. Selected components open in a dedicated, scoped workspace within a separate tab, leaving the main assembly’s visibility state untouched. Line Designer supports one isolate window per structure, with each tab clearly labeled by structure name, tab number, and the Isolate identifier. The scope is dynamic so users can right-click components in the main graphics window and choose Show in Isolate Window to add them, or right-click within the isolate window and choose Hide in Isolate Window to remove them. Any edit made inside the isolate window is reflected immediately in the main assembly view, so the two stay fully synchronized.
For an engineer detailing one robot cell inside a full plant layout, this means working in a clean, scoped tab on exactly the components in scope while the main assembly keeps its full visibility state untouched and updates in real time as edits land.
Faster, distraction-free editing and a significant reduction in the effort required to manage visibility states when working with large, complex plant layouts. Across a day of detail work, the time reclaimed on every focus-and-return cycle compounds quickly into measurable productivity gains.
Cross-parent mounting and connection available by default
Real-world resources rarely sit neatly under a single parent. For example, a tool, a robot, and the riser carrying that robot frequently live in different hierarchical nodes.
Designcenter 2606 makes cross-parent mounting and connection available by default. The mounting and connection relations defined in Line Designer are seamlessly shared and retrieved in Process Simulate, so the relationships hold across layout planning and simulation without manual re-entry. One constraint applies: the tool, robot assembly, and riser must all reside within the same robot package, which preserves data integrity and predictable behavior.
For a representative case, mounting a tool to a robot assembly and that robot assembly to a riser, even when they sit under different hierarchical nodes, this means the connection is defined once in Line Designer and shows up unchanged in Process Simulate, with no workaround in the structure.
Layout planning becomes more flexible, modeling matches the real-world structure of complex manufacturing setups, and the connection survives the trip between Line Designer and Process Simulate. On programs with heavy robotic content, those reductions in structural rework and reconciliation compound quickly into measurable productivity gains.
Learn more
Explore the advanced capabilities inside NX for NC programming by signing up for the NX X Manufacturing trial. No installation is required meaning you can run NX in your browser, in just a few minutes.
If you would like to learn more about the NX for manufacturing features, have a look at the step-by-step tutorial videos on our online community.
